How Deep Can EDM Hole Drilling By Iron Machine Tool?

EDM hole drilling is a specialized machining process that involves creating holes in materials with high precision and excellent repeatability. Unlike conventional drilling methods, which rely on mechanical force, EDM hole drilling uses electrical discharge to erode the material and form the desired hole. The process is carried out using a thin, electrically conductive electrode that serves as a tool to create holes of varying diameters. In this article, we will explore the capabilities of EDM hole drilling, specifically with the cutting-edge technology offered by Iron Machine Tool. As we delve deeper into the process of EDM hole drilling, you will discover the incredible depths this technique can reach, making it an ideal choice for various industrial applications.

The Mechanism Behind EDM Hole Drilling

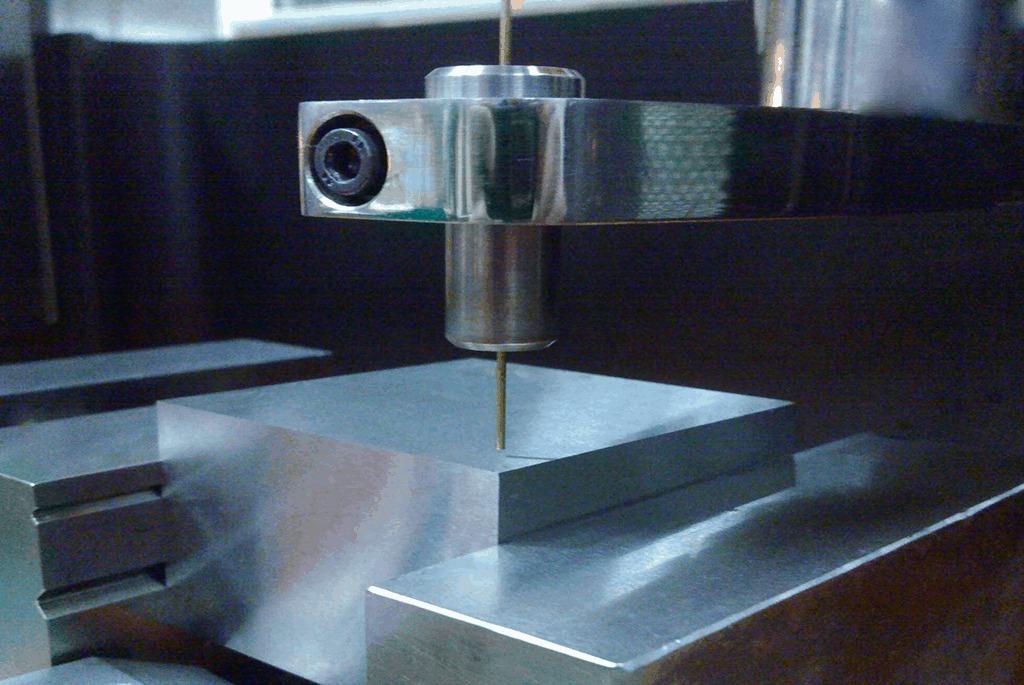

In EDM hole drilling, the material to be drilled is usually electrically conductive, such as metals or alloys. The Iron Machine Tool’s EDM system consists of a power supply, the electrode, and the workpiece submerged in a dielectric fluid. A voltage difference is applied between the electrode and the workpiece, creating a series of rapid and controlled electric discharges.

These electrical discharges, or sparks, melt and vaporize the material in their path, forming a hole. The dielectric fluid, commonly deionized water, helps flush away the molten debris, allowing the EDM process to continue efficiently. The depth of the holes created through EDM drilling can be accurately controlled, making it an ideal choice for applications where precise depth is crucial.

Unraveling the Depths of EDM Hole Drilling

One of the most significant advantages of EDM hole drilling is its ability to reach exceptional depths that might be challenging to achieve through conventional drilling methods. Iron Machine Tool’s advanced EDM technology allows it to drill holes up to several hundred times the diameter of the electrode. This means that holes with depths-to-diameter ratios of 300:1 or even higher can be readily achieved.

Key Advantages of EDM Hole Drilling by Iron Machine Tool

1. Unparalleled Precision: The EDM process, especially when performed with cutting-edge technology like Iron Machine Tool’s systems, guarantees exceptional accuracy and repeatability. This precision is vital in industries where even the tiniest deviation can result in catastrophic consequences.
2. Versatility in Material Compatibility: EDM hole drilling can be employed on a wide range of materials, including hardened metals and exotic alloys. This versatility allows manufacturers to work with various materials without compromising on hole quality.
3. Burr-Free Holes: Conventional drilling methods often leave behind burrs or imperfections around the hole edges. EDM hole drilling, on the other hand, produces burr-free holes, eliminating the need for secondary deburring processes and saving valuable time and resources.
4. No Thermal Stress: Since the EDM process does not involve any direct contact between the tool and the workpiece, there is no generation of heat during the drilling process. This absence of thermal stress ensures that the material properties remain unaltered, even in the most delicate workpieces.
5. Complex Hole Shapes: Traditional drilling methods are limited to simple hole shapes, but EDM hole drilling can produce intricate and complex hole geometries, including small diameter start holes and conical shapes.

Why Choose Iron Machine Tool for EDM Hole Drilling?

When seeking EDM hole drilling services, it is crucial to partner with a reliable and experienced provider. Iron Machine Tool stands out as a leader in the industry, offering state-of-the-art EDM systems that deliver unparalleled performance and precision. With their cutting-edge technology and skilled professionals, Iron Machine Tool ensures that your EDM hole drilling requirements are met with utmost accuracy and efficiency.
